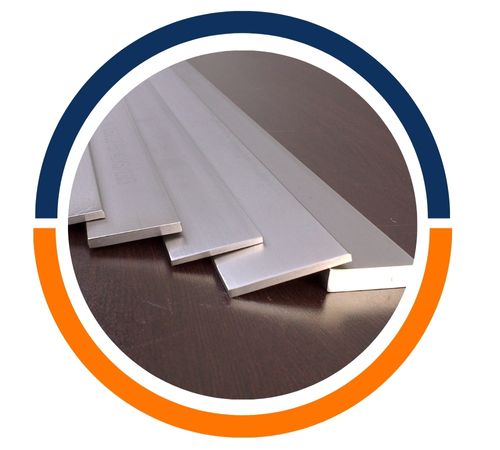

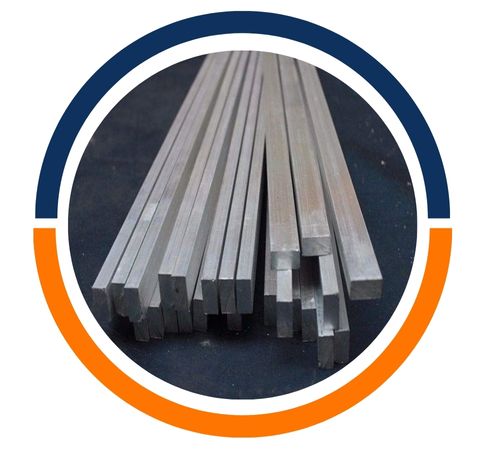

Nasir Aluminium, a reputable manufacturer and supplier located in Kuala Lumpur, Malaysia, specializes in high-quality Aluminium 2024 Flat Bars, serving various industries across the USA. Renowned for its impressive strength-to-weight ratio, Aluminium 2024 is a popular choice in aerospace, automotive, and structural applications where durability and performance are crucial. Our precision-engineered flat bars adhere to strict industry standards, guaranteeing top-notch performance even in challenging environments. With a strong focus on quality, timely delivery, and customer satisfaction, Nasir Aluminium caters to both large-scale industrial needs and custom orders, providing dependable aluminium solutions for a diverse range of engineering and manufacturing projects.
Aluminium 2024 Flat Bars are mainly made of aluminium, with copper being the primary alloying element, complemented by small amounts of manganese and magnesium to boost strength and toughness. This alloy showcases high fatigue resistance and excellent machinability, making it perfect for load-bearing applications. It boasts a tensile strength of about 470 MPa and a yield strength of roughly 325 MPa, along with moderate corrosion resistance. While it may not be as corrosion-resistant as some other aluminium alloys, it performs admirably when coated or treated, ensuring durability in demanding conditions.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Aluminium 2024 | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| 0.50 | 0.50 | 1.20 – 1.80 | 0.30 – 0.90 | 3.8 – 4.9 | 0.25 | 0.15 | 93.5 |
| Typical Mechanical Properties (Min) | |||
| Diameter or minor sectional dimension mm | Tensile Strength, MPa | Yield Strength 0.2%, MPa | Elongation % |
| 0-12.7 | 427 | 310 | 10 |
| 12.7-114.30 | 427 | 290 | 10 |
| 114.30-165.1 | 427 | 276 | 10 |
| 165.1-203.2 | 400 | 262 | 10 |
| STANDARD | UNS | WERKSTOFF NR. | European Standard | BS (OLD) | ISO | USA (AA) | GERMANY (DIN) |
| Aluminium 2024 | A92024 | 3.1355 | AW-AlCu4Mg1 | AU4G1 | AlCu4Mg1 | 2024 | AlCuMg2 |
Nasir Aluminium based in Kuala lumpur, Malaysia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminum 2024 Flat Bars to meet specific project needs. Our team at Nasir Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nasiraluminium.com
Aluminium 2024 Flat Bars find extensive use in aerospace structures, aircraft fittings, and automotive components thanks to their high strength and lightweight properties. They are particularly suited for high-stress and fatigue-prone applications, such as wing and fuselage structures, truck wheels, and suspension parts. In the marine and defense sectors, they are utilized in structural frameworks and load-bearing components. Their excellent machinability also makes them ideal for precision engineering, tooling, and the manufacturing of mechanical parts where performance, durability, and reliability are essential.
