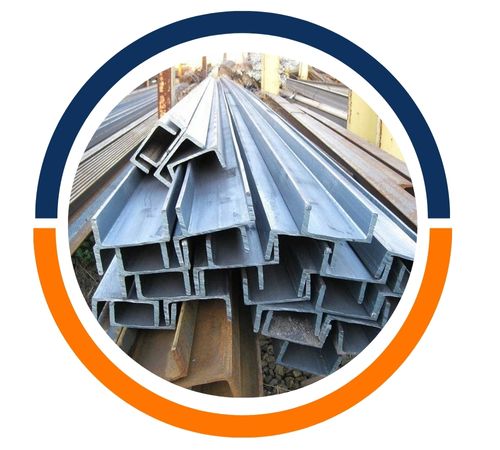

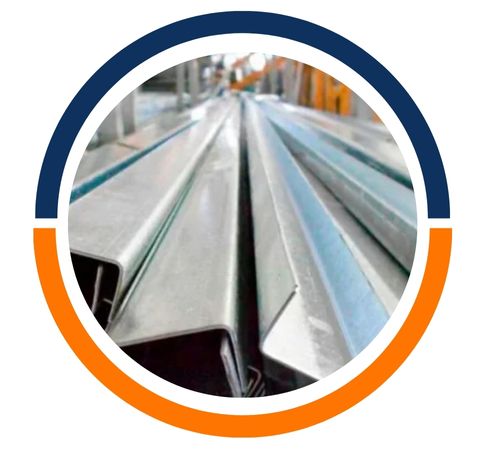

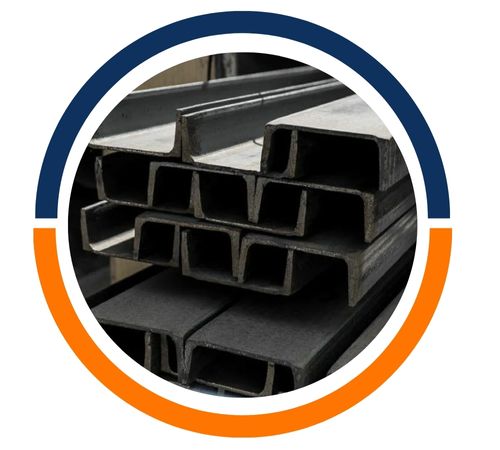

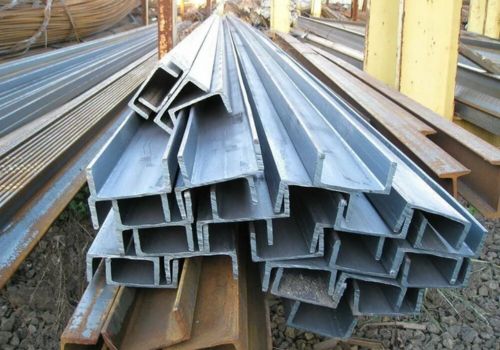

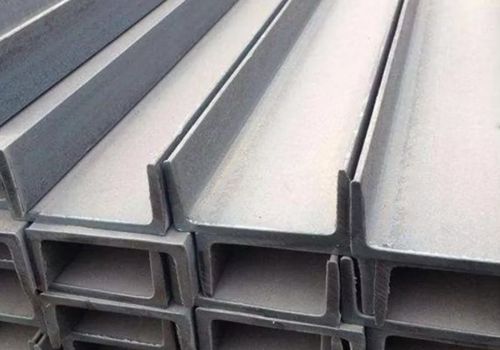

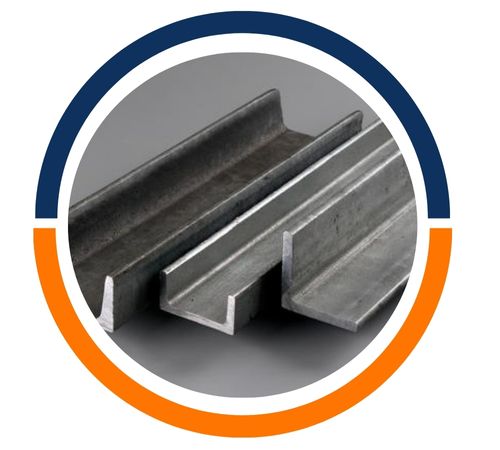

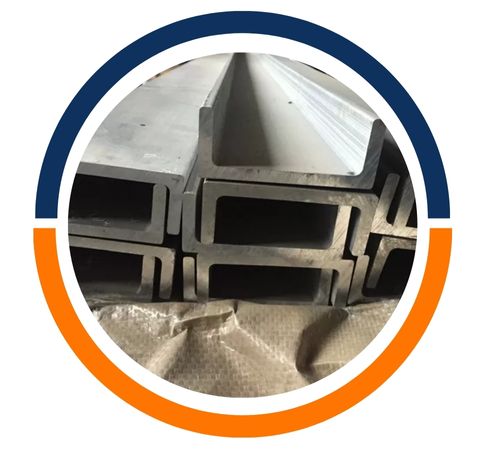

Nasir Aluminium, Kuala Lumpur, Malaysia, is a well-known manufacturer and supplier of Aluminium 2017 channels, characterized by their remarkable strength and machinability. Aluminium 2017 is a heat-treatable alloy with high tensile strength, which finds extensive application in the aerospace and high-performance industrial sectors. These channels are accurately formed and dimensionally stable and provide superior fatigue and mechanical stress resistance. Proved to international standards, Nasir Aluminium’s 2017 channels are ideal for load-carrying structures, machine frames, and mechanical assemblies. Their better durability and machinability render them ideal for structural frameworks as well as precision-engineered systems.
Aluminium 2017 channels comprise mainly 3.5–4.5% copper, 0.4–0.8% magnesium, 0.6–1.0% manganese, and minute traces of silicon and iron. The alloy gives a tensile strength of 430–510 MPa and a yield strength of 280–400 MPa upon heat treatment. The corrosion resistance is moderate but can be improved by surface coatings or anodizing. Al 2017 has very good machinability and average weldability. It retains good mechanical properties in arduous applications with calls for strength, stiffness, and accurate dimensional tolerance under dynamic loads or machining processes.

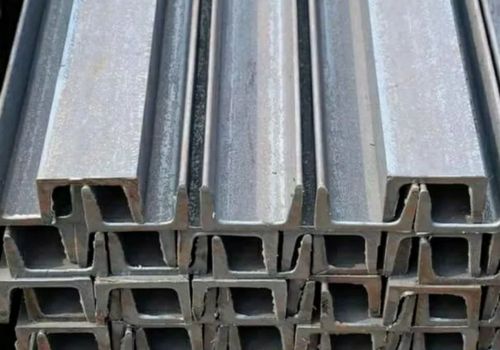

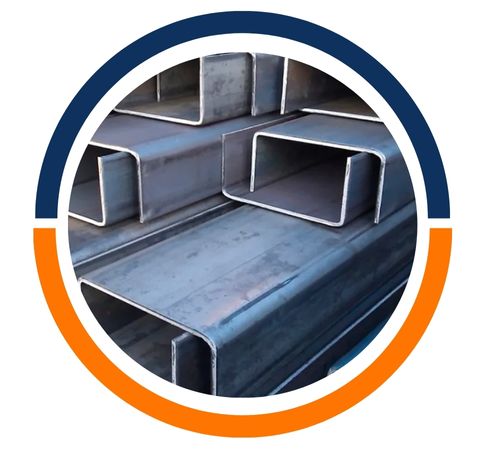

Specifications: ASTM B211 / ASME SB211
Temper: O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Thickness: 0.91mm to 10 mm
Length: 10 to 12 Feet or as per clients’ requirement
Width: 9.5 mm X 9.5 mm To 150 mm X 75 mm or Custom
Finish: Mill, Customer specific finish
Surface: Anodize, powder coating, electrophoresis, PVDF coating, wood grain painting, matted, etc
Form: C-Channel, Box-Channel, U-Channel, J-Channel, Hat Channel, Strut Channels, Miscellaneous Channels
| Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.40-0.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max |
| Material | Condition | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | |||
| Al 2017 | 2017-T4 Bar | 55 | 379 | 32 | 221 | 12 |
Nasir Aluminium based in Kuala lumpur, Malaysia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
Yes, we offer custom sizes for Aluminium 2017 Channel to meet specific project needs. Our team at Nasir Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nasiraluminium.com
Aluminium 2017 channels are extensively used in aerospace assemblies, aircraft fittings, rivets, and structural frameworks. In industrial machine equipment, they find application in machine bases, enclosures, and load-support structures. Automotive and defense applications use them for suspension components, brackets, and load-bearing mounts. These channels also have applications in robotics, cranes, material handling equipment, and other engineered products that need high strength-to-weight ratio. Their machinability renders them well-suited for customized parts with precise tolerances. Less resistant to corrosion than certain other alloys, however, protective coatings permit use in moderately aggressive environments, such as indoor infrastructure, marine support systems, and structural mechanical housings.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
