Aluminium Sheets and Plates manufacturer in Malaysia

Aluminium Sheets Dealer in George town, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in George town, Al Sheets in Kuantan, Alumnium Alloy Plates Size Chart, Aluminium Sheet Price in Ipoh, Alumnium Cold Rolled (CR) Sheet Supplier in Malaysia, Al Sheet Stockist in Kuala lumpur, Aluminium Sheets and Plates Exporter in Malaysia, Al Sheet Stockist in Kuala lumpur, Alumnium Alloy Plates Supplier in Kuala lumpur

Nasir Aluminium Manufacturer and Suppliers, based in Kuala Lumpur, Malaysia, stands out as a top-notch manufacturer and distributor of premium aluminium sheets and plates. Known for their reliability, precision, and innovative approach, this company caters to a variety of industries, including construction, transportation, marine, aerospace, and manufacturing. By utilizing cutting-edge machinery and strict quality control measures, Nasir Aluminium ensures that their aluminium sheets and plates comply with both local and international standards. Their capability to offer custom sizes and thicknesses makes them a go-to choice for clients looking for dependable and cost-effective aluminium solutions across Malaysia and the Southeast Asian region.

The aluminium sheets and plates produced by Nasir Aluminium are crafted from high-performance alloys like 1100, 3003, 5052, 6061, and 7075, each tailored to meet specific application needs. These products boast tensile strengths ranging from 90 MPa to over 500 MPa and come in various tempers, including H14, H32, T6, and O. With outstanding corrosion resistance, weldability, and formability, these sheets and plates maintain consistent flatness and surface quality. Every product undergoes rigorous inspection and testing to verify thickness accuracy, mechanical strength, and alloy composition, ensuring reliable performance for both structural and precision applications.

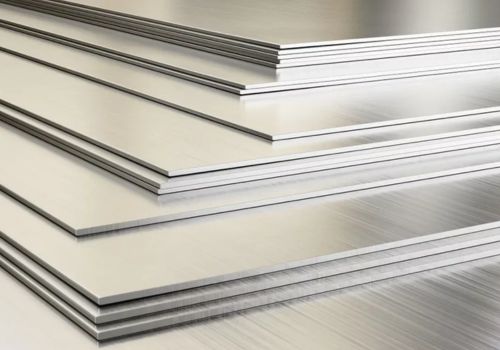

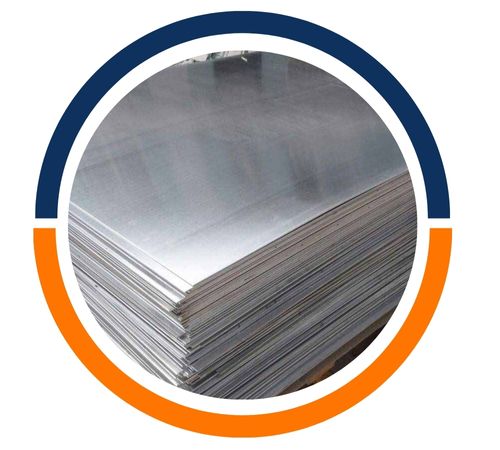

Aluminium Alloy Sheets

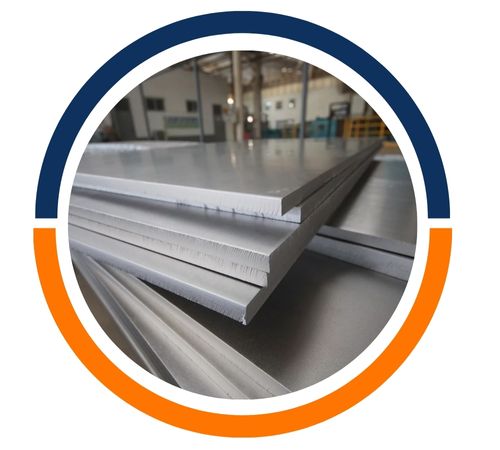

Aluminium Hot Rolled Sheets

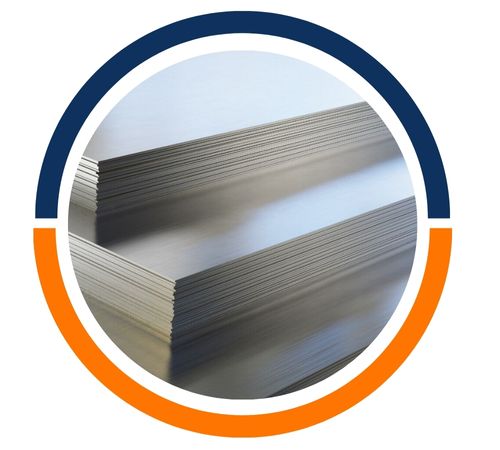

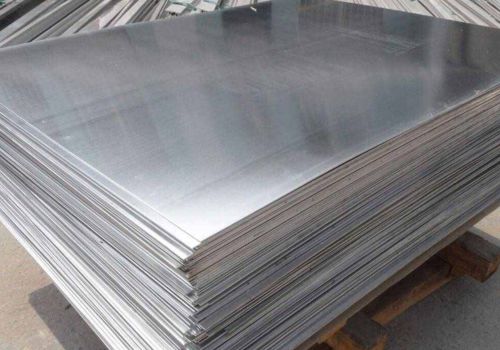

Aluminum Cold Rolled Sheets

Alumnium Clad Sheets Distributor in Malaysia, Al Perforated Plates Supplier in Kuala lumpur, Aluminium Alloy Sheet Weight Chart, Al Plates Exporter in Kuala lumpur, Aluminium Polished Sheets Manufacturer in George town, Aluminium Shim Sheet and Plate Price List in Malaysia, Alumnium Chequered Plates Sizes in mm, Alumnium Alloy Hot Rolled Plate Distributor in Kuantan, Al Sheets and Plates Ipoh

Specifications of Aluminium Sheets and Plates

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Chemical Compositions of Aluminium Sheets and Plates

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Mechanical Properties of Aluminium Sheets and Plates

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium Sheets and Plates

Largest Aluminium Sheets and Plates Manufacturer and Exporter in Kuala lumpur, Malaysia

Aluminium sheets and plates from Nasir Aluminium find their way into a multitude of uses, such as roofing, cladding, pressure vessels, signboards, marine components, aircraft structures, and industrial machinery. Their lightweight yet robust characteristics make them perfect for load-bearing applications where corrosion resistance and machinability are essential. These flat products are easy to cut, drill, bend, and fabricate, making them a versatile choice for various projects.

Equivalent Grades of Aluminium Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium Sheets and Plates

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Are Custom Sizes Available For Aluminium Sheets and Plates?

Yes, we offer custom sizes for Aluminium Sheets and Plates to meet specific project needs. Our team at Nasir Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nasiraluminium.com

Uses of Aluminium Sheets and Plates

Aluminium Sheets and Plates are versatile materials used across a wide range of industries. In construction, they are employed for roofing, cladding, and structural components due to their durability and corrosion resistance. The automotive and aerospace industries rely on aluminium for lightweight body panels and structural parts, enhancing fuel efficiency. In marine applications, they are valued for their resistance to saltwater corrosion. Additionally, aluminium sheets and plates are widely used in packaging, electrical enclosures, cookware, and signage, making them indispensable in modern manufacturing and infrastructure projects.
