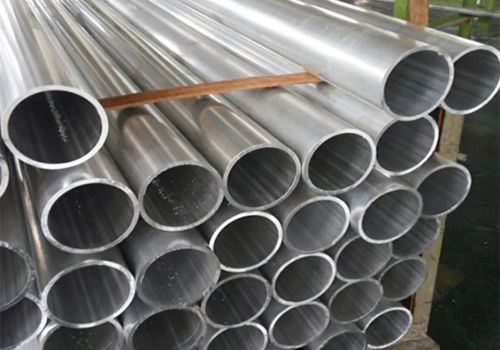

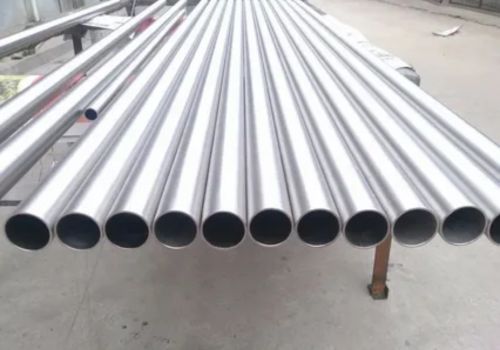

Nasir Aluminium Manufacturer and Suppliers, based in Kuala Lumpur, Malaysia, stands out as a reliable and leading producer of top-notch aluminium seamless pipes. With state-of-the-art production facilities and a strong commitment to meeting international standards, this company provides seamless aluminium piping solutions to a variety of industries, including aerospace, marine, oil and gas, construction, and automotive. Known for their precision, uniformity, and durability, Nasir Aluminium’s seamless pipes have become the go-to choice for customers across Malaysia and the broader Southeast Asian region.
Seamless aluminum pipe is made primarily from aluminum alloys, usually 1050, 6061, or 6063, which vary in composition. For example, the 6061 alloy typically contains 97.9-99.6% aluminum, 0.8-1.2% magnesium, 0.4-0.8% silicon, and 0.15-0.4% copper. These tubes exhibit excellent mechanical properties such as high strength, corrosion resistance and luminescence properties. The tensile strength ranges from 170-310 MPa, while the yield strength is usually between 150-275 MPa depending on the alloy. Width varies from 8-20%, ensuring good formability. These features make seamless aluminum pipe ideal for energy-demanding applications and environmental resistance.
Standards : ASTM B345, B241, B429 / ASME SB345, SB241, SB429
Standard : AMS QQ-A-200/8, AMS QQ-A-200/9, AMS 4160/4161/4172
Size : 8 (1-1/2″ / 1.900″)
Outer Diameter : 1″ through 16″
Length : Double Random, Single Random, Cut Length
Thickness : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
End : Plain End, Beveled End, Threaded
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
| 7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
| 7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
The seamless pipes are crafted from high-quality aluminium alloys like 6061, 6082, and 7075, which offer an impressive mix of corrosion resistance, lightweight characteristics, and mechanical strength. The seamless design eliminates welded joints, enhancing pressure resistance and overall structural integrity. Depending on the specific alloy and temper, these pipes can achieve tensile strengths ranging from 150 MPa to 500 MPa. Each pipe undergoes rigorous testing for dimensional accuracy, wall thickness, surface finish, and mechanical performance, ensuring they meet the stringent standards required for critical applications across various industries.
Yes, we offer custom sizes for Aluminium Seamless Pipes to meet specific project needs. Our team at Nasir Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nasiraluminium.com
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Nasir Aluminium’s aluminium seamless pipes find extensive use in fluid transportation systems, compressed air lines, structural supports, hydraulic systems, and heat exchangers. Their corrosion resistance makes them particularly suitable for marine and offshore applications, while their strength and lightweight nature are perfect for aerospace and automotive uses. The lack of welds contributes to better fatigue resistance and greater reliability under pressure. With adaptable manufacturing capabilities and quick turnaround times, Nasir Aluminium is well-equipped to meet the diverse needs of its clients.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
