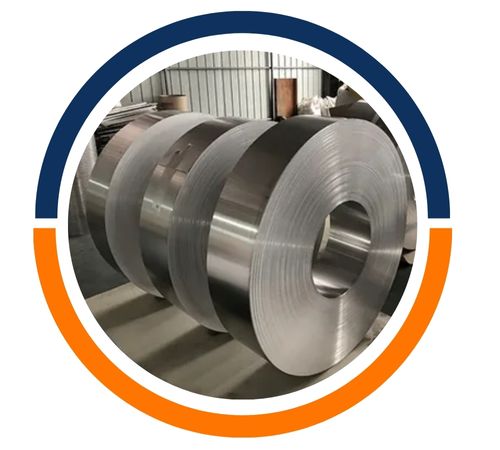

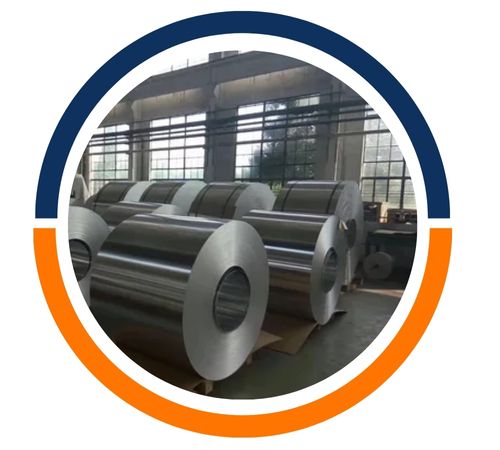

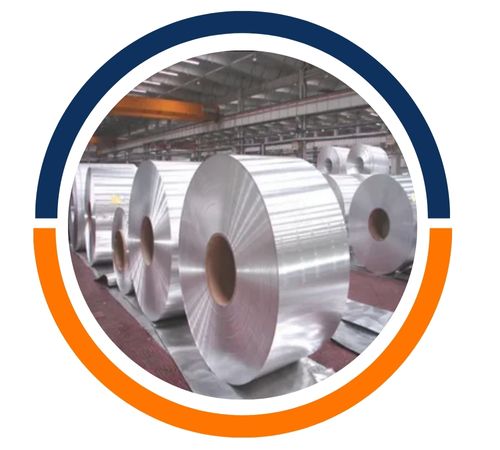

Nasir Aluminium is a reputable manufacturer and supplier located in Kuala Lumpur, Malaysia, focusing on high-quality Aluminium 5005 coils for clients in the USA. Renowned for its precision engineering and top-notch quality, the company provides coils that boast excellent corrosion resistance, durability, and a fantastic surface finish. These coils are crafted in accordance with international standards, ensuring they are reliable for a variety of industries. With state-of-the-art manufacturing facilities and a strong commitment to customer satisfaction, Nasir Aluminium delivers Aluminium 5005 coils that meet strict specifications, catering to architectural, industrial, and marine applications, making them a go-to choice for customers looking for premium aluminium products in the USA.
Aluminium 5005 coils mainly consist of aluminium with 0.8% magnesium, along with small amounts of iron, silicon, copper, manganese, zinc, and trace elements. This alloy is known for its good corrosion resistance, particularly in marine and industrial settings, and it also offers excellent weldability. The typical tensile strength falls between 145–185 MPa, with a yield strength of around 110 MPa. Its elongation is about 12–20%, which allows for good formability. These characteristics make Aluminium 5005 ideal for applications that require both strength and visual appeal, especially when anodized.
Standards : ASTM B209 / ASME SB209
Temper : O,H14,H16,H18,H19,H22,H24
Thickness : 0.1-4
Width : coil
Length : 100-1600
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Coil Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating

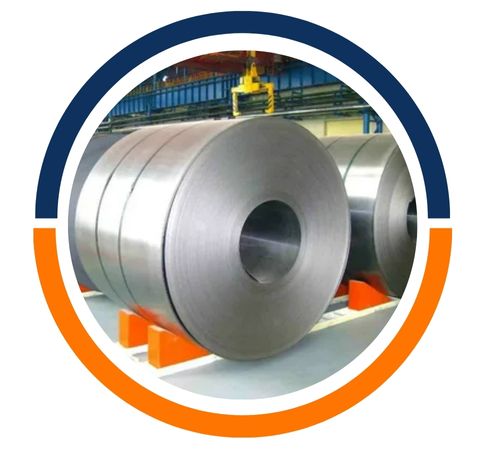

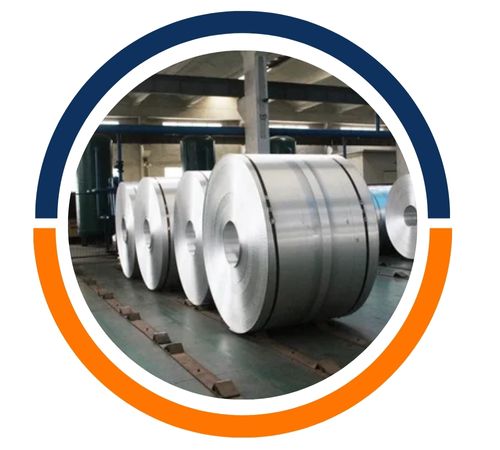

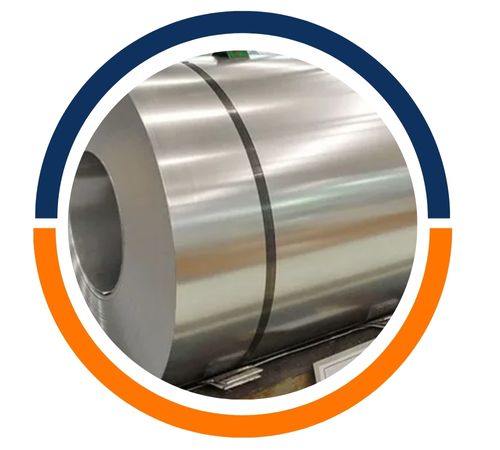

Type : Hot-Rolled (HR) / Cold-Rolled (CR) Coil
| European Standard | GERMANY | UNS | DIN,WNr |
| B57S | AI-Mg-1 | A95005 | – |
| Weight% | Al | Si | Fe | Cu | Mn | Cr | Mg | Zn | Others Each | Others Total |
| 5005 | Bal | 0.30 max | 0.70 max | 0.20 max | 0.20 max | 0.10 max | 0.50 / 1.10 | 0.25 max | 0.05 max | 0.15 max |
| Material | Temper | Tensile Strength (N/mm²) | Yield Strength (N/mm²) | Elongation on 50mm (%) | |||
| 0.5 mm | 0.8 mm | 1.3 mm | 2.6mm | ||||
| 5005 | 0 | 95-145 | – | 18 | 20 | 21 | 22 |
| 5005 | H12 | 125-170 | 80 | 4 | 5 | 6 | 8 |
| 5005 | H14 | 145-185 | 100 | 3 | 3 | 5 | 6 |
| 5005 | H18 | 185 min | 165 | 1 | 2 | 3 | 3 |
Nasir Aluminium based in Kuala lumpur, Malaysia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5005 Coils to meet specific project needs. Our team at Nasir Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@nasiraluminium.com
Aluminium 5005 coils find extensive use in roofing, siding, curtain walls, and decorative panels thanks to their outstanding surface finish and corrosion resistance. They are also favored in the marine industry for boat hulls, decks, and other components that face tough conditions. In the transportation sector, these coils are utilized for automotive panels and trailer bodies. Moreover, their anodizing capabilities make them perfect for signage, architectural facades, and appliance panels. The blend of strength, workability, and aesthetic quality ensures they are a top pick for both functional and decorative applications.
